    Autex Raft

    Color:
    Acros
    Beehive
    Bosco
    Cavalier
    Empire
    Falling Water
    Flatiron
    Galaxy
    Gherkin
    Ironbank
    Lotus
    Muralla
    Opera
    Parthernon
    Pavilion
    Petronas
    Pinnacle
    Rosada
    Sargezo

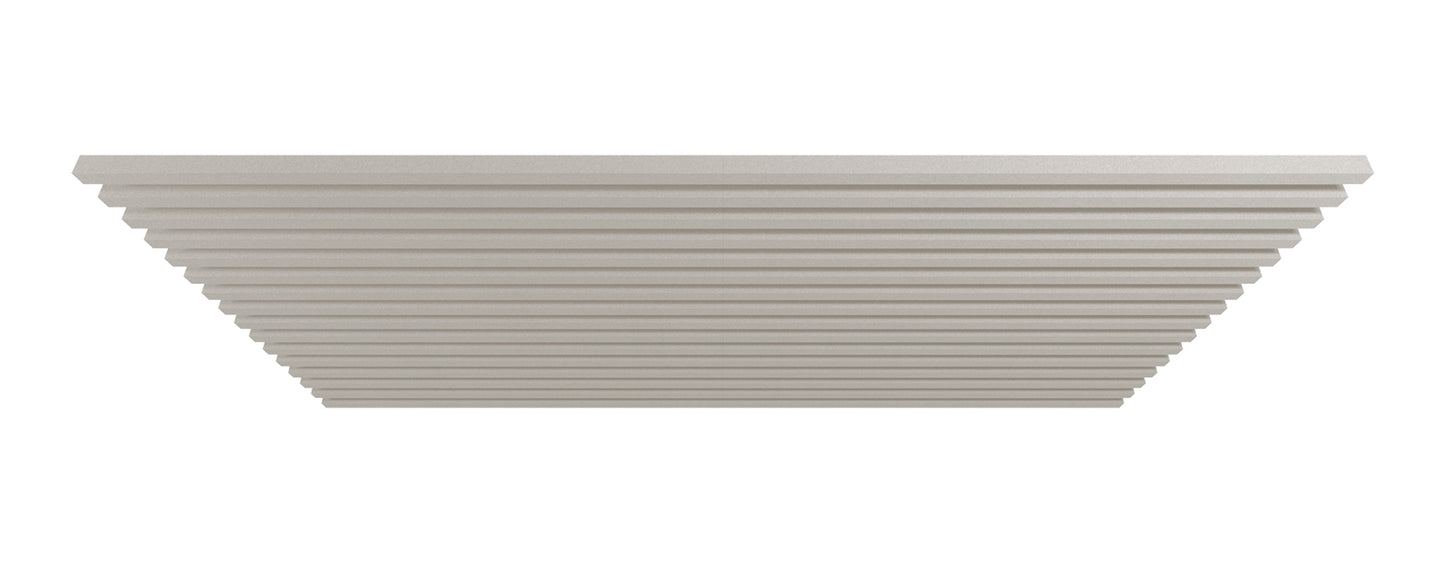

    Savoye
    Senado
    Tree House
    Zenith

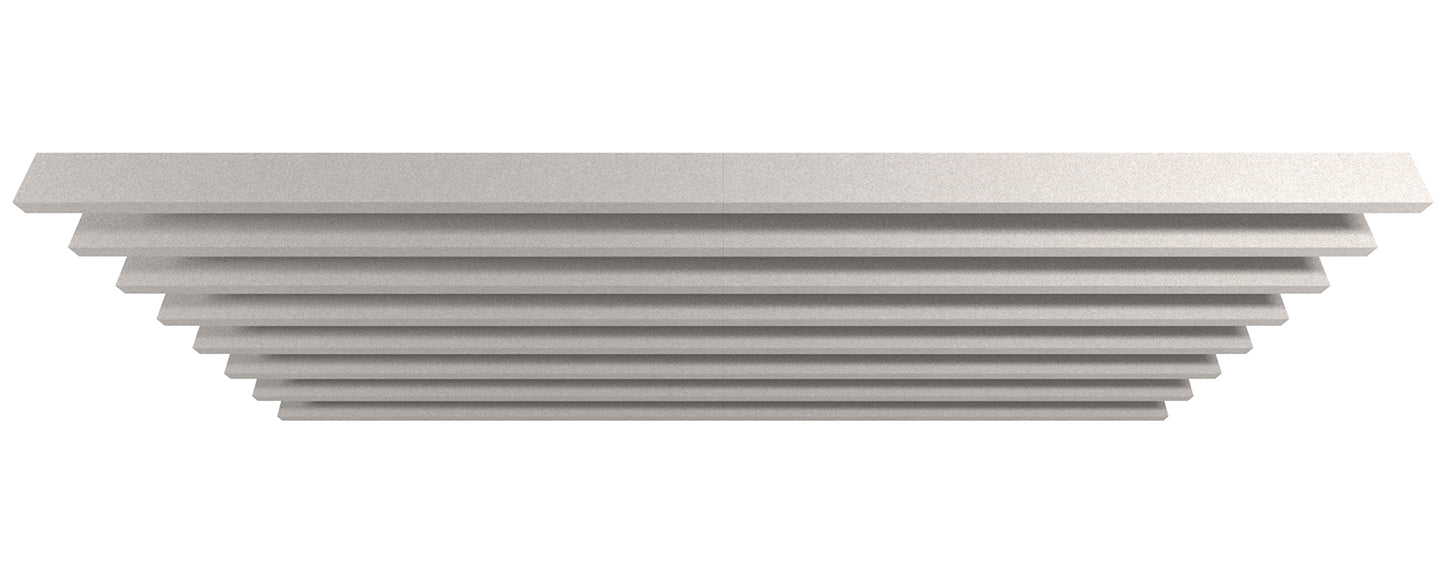

    Design (Beams):
    • Raft offers targeted sound absorption, countless configurations, and stress-free installations.

      Comprised of linear, almost skeletal elements, the modular Frontier™ system congregates to form undulating sculptures and rhythmic slatted features. Available in two variations—Fins and Raft—the Frontier system is designed to communicate with interior spaces via an adjustable channel and clip system—giving you complete control over the height, spacing, and placement of each individual component. Lightweight yet solid in appearance, Frontier Acoustic Fins and Raft are made from 100% polyester fibre and cut to form elegant 2D and 3D shapes. Frontier is designed to be ‘tuned’ to interior spaces, offering tailored acoustic absorption across a wide range of frequencies.

      Features and Benefits
      • Delivers excellent acoustic performance
      • Choose from 23 colours and four styles
      • Formed by just three elements, Raft goes together quickly and efficiently, saving time on site
      • Dismantle or remove the system from its setting and reassemble or reposition just as easily and quickly
      • Configure Raft to fit the space perfectly
      • In-house design team dedicated to customisation
      • Made in New Zealand

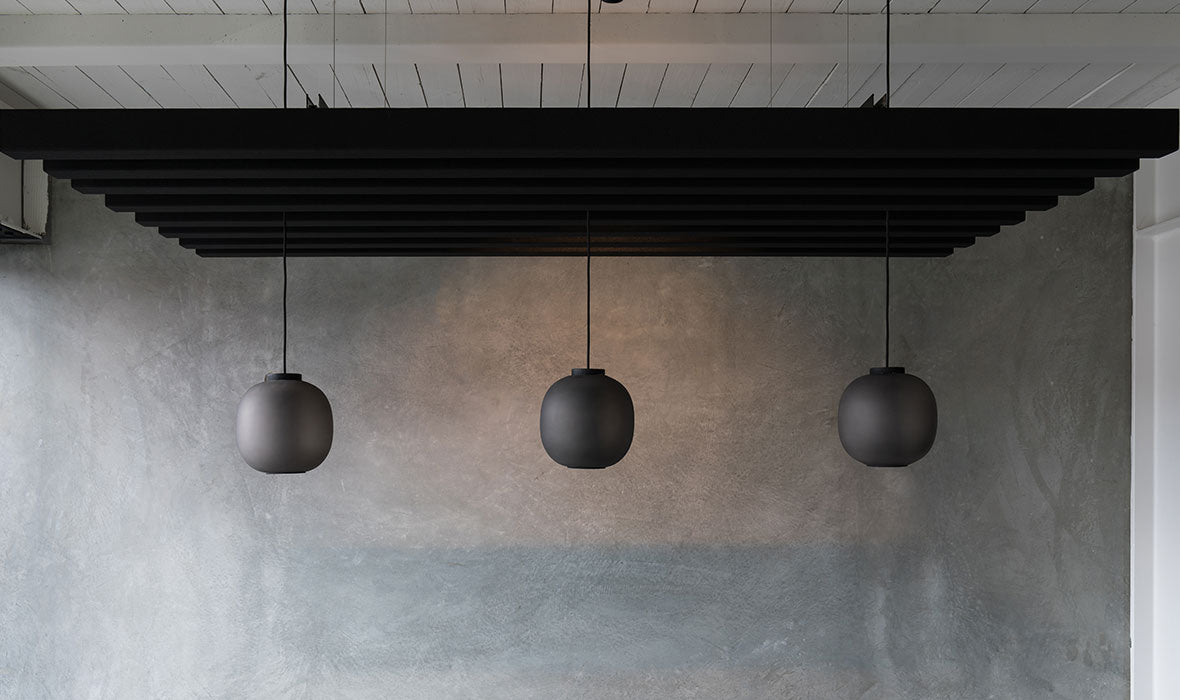

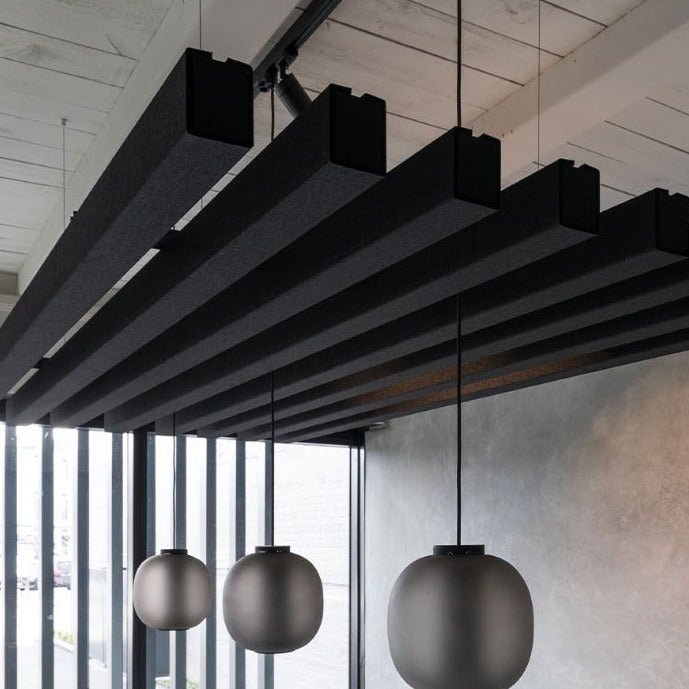

      Raft in Action at Hello Beasty


      "My customers can’t have a conversation when we shut the doors. Can you help?"

      Award winning restaurant Hello Beasty had a major issue. As the days shortened and Autumn brought colder weather so to an acoustic issue... Customers couldn’t hear each other with sound bouncing off all the reflective surfaces.

      Acoustic Solutions Store were engaged to ensure the winter months didn’t also result in a loss of loyal clientele. An acoustic appraisal identified the issues and a sensitive specification of Autex Raft complemented the new fit out aesthetic.

      Customers can now hear each other clearly all year round and the team at Hello Beasty can concentrate on delivering the contemporary fusion cuisine for which they are locally acclaimed.

      • NRC | Fins: 0.70, 0.75, 0.85, 0.90, 1.00, 1.05
      • NRC | Raft: 0.75, 0.80, 0.90, 0.95
      • Composition: 100% polyester fibre (PET)
      • Size: 2,400 mm Fin Length
      • Thickness | Fins: 12 mm, 24 mm
      • Thickness | Raft: 12 mm
      • Product Placement: Ceiling, Wall

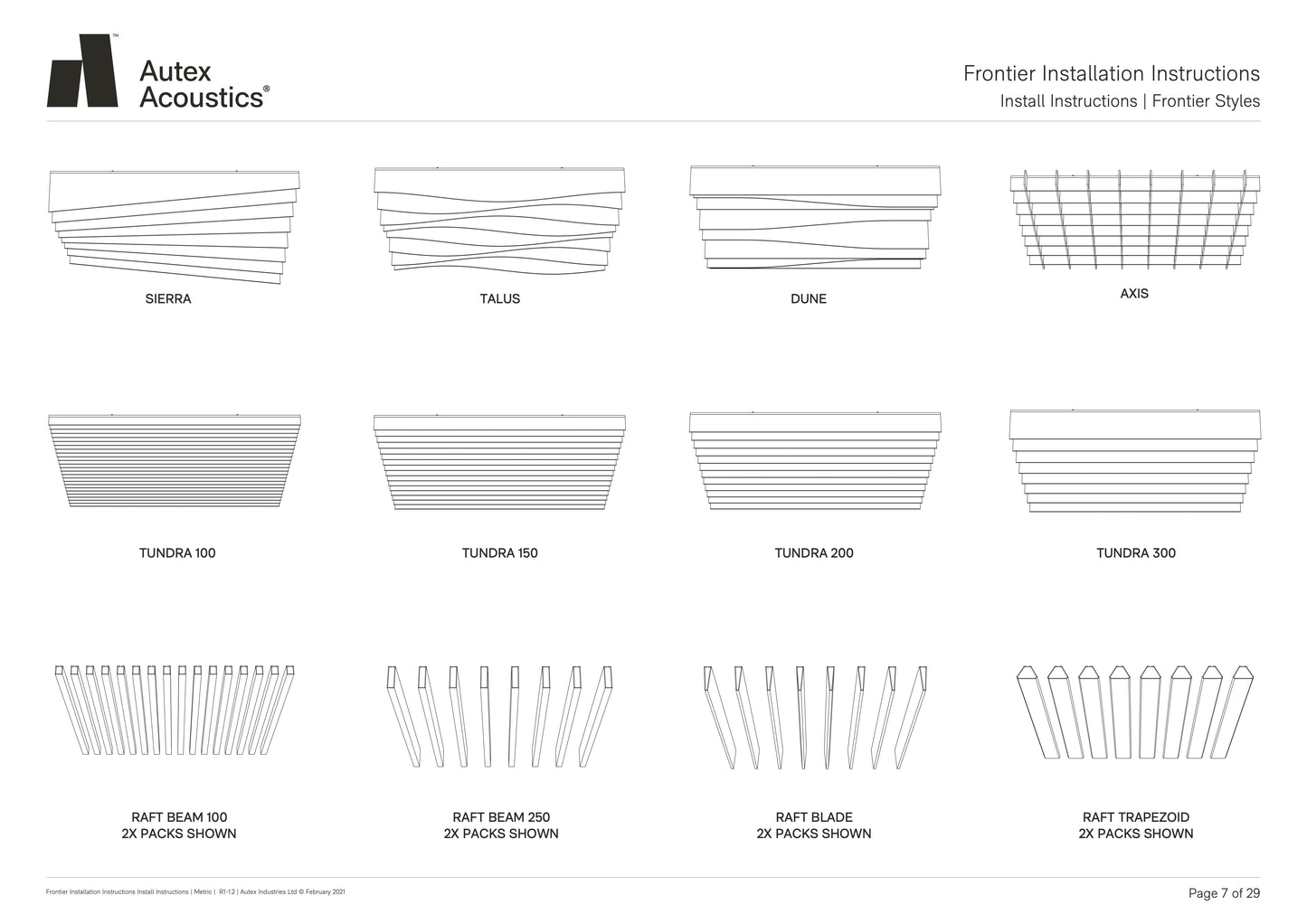

      • Form: Fins | Raft
      • Install method: Refer to install instructions for install method
      • Application: Commercial/Office Space, Education, Hospitality, Retail
    PROJECT
    DIY DIY products. Can be installed by anyone who can hold and read a tape measure.
    Competent Tradesperson Installed by a competent tradesperson only, i.e. builder.
    Autex Certified Installer Installed only by an Autex certified preferred installer.
